Astec Concrete Dust Collectors

Overview

HIGH-EFFICIENCY COLLECTION SYSTEMS THAT LEAVE THE OTHERS IN THE DUST.

Astec offers a wide selection of dust control systems that are engineered to optimally perform based on the type of plant in operation. We feature truck mixer collectors, central mix collectors, silo collectors and batcher collectors.

All are single source manufactured by Astec to the highest standards of workmanship so you know they are built for reliability and unmatched performance. Plus, they are backed by the industry’s best support system for parts and service.

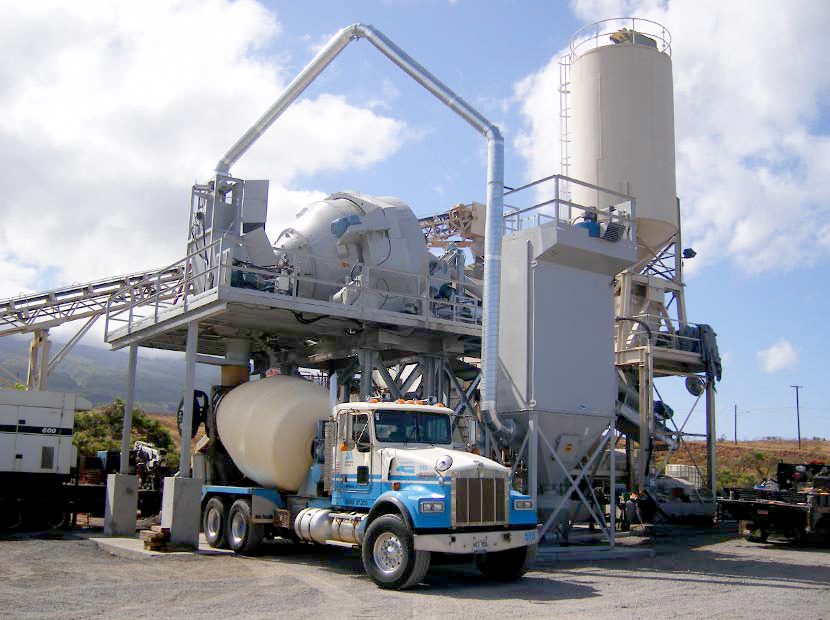

For plants with a gravity cement batcher, the dust control system can be mounted on the plant to eliminate an additional foundation and ground clutter.

Key Specifications

Astec offers two powerful and efficient dust control systems for weigh batching operations – the BV-14 and the PJC-80.py.

Model
BV-14	The BV-14 features a built-in atmosphere pressure cleaning system 14 each filter bags – 4 in. x 16 in. long 20 sq. ft. of cleaning area Atmosphere pressure cleaning system
PJC-80	Two (2) filter cartridges – 12 in. x 16 in. long 80 sq. ft. of cleaning area High pressure air - pulse jet cleaning system

Model

BV-14

The BV-14 features a built-in atmosphere pressure cleaning system
14 each filter bags – 4 in. x 16 in. long
20 sq. ft. of cleaning area
Atmosphere pressure cleaning system

PJC-80

Two (2) filter cartridges – 12 in. x 16 in. long
80 sq. ft. of cleaning area
High pressure air - pulse jet cleaning system

Astec offers a complete line of powerful silo dust control systems that provide a high quality and cost effective means to meet today’s environmental standards.

Fill pipe C.F.M. capacities:

850 C.F.M.: Truck mounted blower
1,250 C.F.M.: 60 H.P. blower
1,800 C.F.M.: 75 H.P. blower

Model	Standard	Optional
PJ-200 Bag Filter	28 each filter bags – 6 in. x 61 in. long 202 sq. ft. cleaning area High pressure air - pulse jet cleaning system 1,200 C.F.M. capacity	5 H.P. radial vane suction blower
PJ-300 Bag Filter	42 each filter bags – 6 in. x 61 in. long 297 sq. ft. cleaning area High pressure air - pulse jet cleaning system 1,800 C.F.M. capacity	7 1/2 H.P. radial vane suction blower
PJ-400 Bag Filter	28 each filter bags – 6 in. x 120 in. long 416 sq. ft. cleaning area High pressure air - pulse jet cleaning system 2,500 C.F.M. capacity	5 H.P. radial vane suction blower
PJ-600 Bag Filter	42 each filter bags – 8 in. x 120 in. long 623 sq. ft. cleaning area High pressure air - pulse jet cleaning system 3,800 C.F.M. capacity 7 1/2 H.P. suction blower
PJ-300S Cartridge Filter	8 each filter cartridges – 8 in. x 40 in. long 304 sq. ft. cleaning area High pressure air - pulse jet cleaning system 1,520 C.F.M. capacity	7 1/2 H.P. radial vane suction blower
PJ-450 Cartridge Filter	6 each filter cartridges – 8 in. x 78 in. long 456 sq. ft. cleaning area High pressure air - pulse jet cleaning system 2,880 C.F.M. capacity	5 H.P. suction blower
PJ-600 Cartridge Filter	8 each filter cartridges – 8 in. x 78 in. long 608 sq. ft. cleaning area High pressure air - pulse jet cleaning system 3,040 C.F.M. capacity	7 1/2 H.P. suction blower
PJ-900 Cartridge Filter	12 each filter cartridges - 8 in. x 78 in. long 912 sq. ft. cleaning area High pressure air - pulse jet cleaning system 4,580 C.F.M. capacity	10 H.P. suction blower

Astec truck mixer dust collectors are engineered specifically for dust collection from the truck mixer charge hopper during dry batching operations.

Model	Standard	Options
PJ-980D Bag Filter	66 each filter bags – 6 in. x 10 ft. long 980 sq. ft. cleaning area High pressure air - pulse jet cleaning system PBI 15 direct suction blower 15 H.P. TEFC motor 5,880 C.F.M. capacity at 8 in. water NOTE: The Model PJ-980DI dust control system is International version with trimmed flanges and shipping skids
PJ-1400D Bag Filter	96 each filter bags – 6 in. x 10 in. 1,427 sq. ft. cleaning area High pressure air - pulse jet cleaning system PBI 20 direct suction blower 20 H.P. TEFC motor 8,000 C.F.M. capacity at 8 in. water
PJ-2000D Bag Filter	132 each filter bags – 6 in. x 10 ft. long 1,962 sq. ft. cleaning area High pressure air - pulse jet cleaning system 20 H.P. TEFC motor 10,000 C.F.M. capacity at 8 in. water
PJ-2500D Bag Filter	168 each filter bags – 6 in. x 10 ft. long 2,496 sq. ft. cleaning area High pressure air - pulse jet cleaning system 30 H.P. TEFC motor 15,000 C.F.M. capacity at 8 in. water
PJC-600 Cartridge Filter	8 each filter cartridges – 8 in. x 78 in. long 608 sq. ft. cleaning area High pressure air - pulse jet cleaning system 3,040 C.F.M. capacity	7 1/2 H.P. suction blower
PJC-900 Cartridge Filter	12 each filter cartridges - 8 in. x 78 in. long 912 sq. ft. cleaning area High pressure air - pulse jet cleaning system 4,580 C.F.M. capacity	10 H.P. suction blower
PJC-1200 Cartridge Filter	16 each filter cartridges – 8 in. x 78 in. long 1,216 sq. ft. cleaning area High pressure air - pulse jet cleaning system 6,080 C.F.M. capacity	15 H.P. suction blower

Astec's central dust control systems vent the storage silos and the mixer into one dust collector. While larger in size, these systems are easier to maintain with single dust collector.

Model
PJ-1400D Bag Filter	96 each filter bags – 6 in. x 10 in. 1,427 sq. ft. cleaning area High pressure air - pulse jet cleaning system PBI 20 direct suction blower 20 H.P. TEFC motor 8,000 C.F.M. capacity at 8 in. water
PJ-2000D Bag Filter	132 each filter bags – 6 in. x 10 ft. long 1,962 sq. ft. cleaning area High pressure air - pulse jet cleaning system 20 H.P. TEFC motor 10,000 C.F.M. capacity at 8 in. water
PJ-2500D Bag Filter	168 each filter bags – 6 in. x 10 ft. long 2,496 sq. ft. cleaning area High pressure air - pulse jet cleaning system 30 H.P. TEFC motor 15,000 C.F.M. capacity at 8 in. water

Model

PJ-1400D Bag Filter
