Heatec Reboiler

Overview

Heatec Reboilers are fired heat exchangers that can be used in systems that process natural gas for pipeline distribution.

Two of these units may be used in a gas processing system. One may be used to regenerate glycol. The other may be used to regenerate amine. When glycol is used to remove moisture from gas the glycol becomes a mixture of glycol and water. It must be regenerated before it can be reused. Regeneration removes the water from the glycol. The reboiler provides heat for this process. Heating the glycol-water mixture vaporizes the water, while the glycol remains mostly liquid. The vapors are usually piped to a distillation column, which recovers glycol that may have vaporized.

When amine is used to remove hydrogen sulfide (H₂S) and carbon dioxide (CO₂) from gas, it too must be regenerated before it can be reused. Regeneration removes these contaminants from the amine. The re-boiler provides heat for this process.

Applications

Crude Oil & Natural Gas Processing

Oil refining and gas processing are procedures that turn these complex chemical mixtures into a range of usable fuels. Refining and processing crude oil and natural gas require highly reliable and efficient heating systems and services. Astec produces a number of reliable and efficient components for use in oil refining and gas processing including heaters, tanks, heat recovery systems, and expansion tanks.

Learn More

Chemical

Chemical plants convert oil, natural gas, air, water, metals, and minerals into chemical products which are used to manufacture numerous consumer products and play an important part in agriculture, manufacturing, construction, and service industries. The transfer of heat is an essential component of all chemical processes. An efficient heat transfer system is a key to manufacturing many chemicals.

Learn More

Paints, Resins & Adhesives

Production of paints, resins, and adhesives involves complex chemical processes that demand sophisticated, reliable thermal processing systems. Astec has a long history of producing trustworthy and efficient thermal systems that can be used in the production of paints, resins, and adhesives.

Learn More

Downloads

Astec Firetube Reboiler
Download (pdf) 2 MB
Astec Helical Coil Reboiler
Download (pdf) 2 MB

Features

Heatec Helical Coil Reboiler

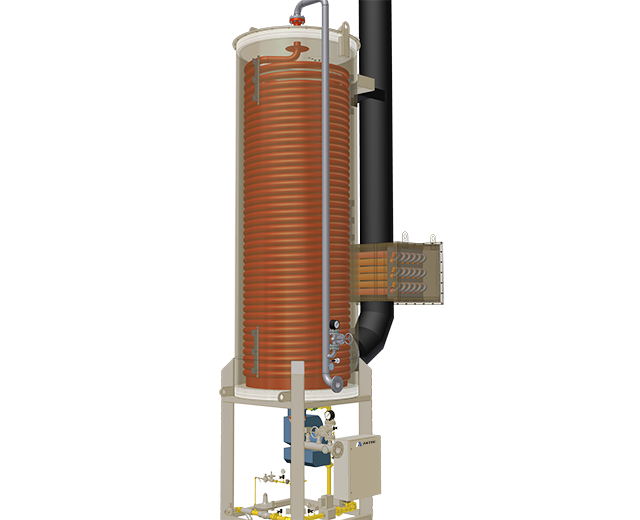

The unit has one or more helical coils that resemble those in HMO heaters or conventional thermal fluid heaters, also used in gas processing. However, these units should not be confused with each other. Unlike HMO heaters, the glycol or amine is heated directly as it flows through the coils of the reboiler.

The reboiler can be designed with one or more coils, depending on the flow rate needed. The shell of the unit is insulated to minimize heat loss and increase thermal efficiency. The vertical orientation of the reboiler uses a smaller footprint than the fire tube reboiler. It also makes draining the coils easier. Our reboilers can be provided in various sizes to meet customer needs.

Heatec Fire Tube Reboiler

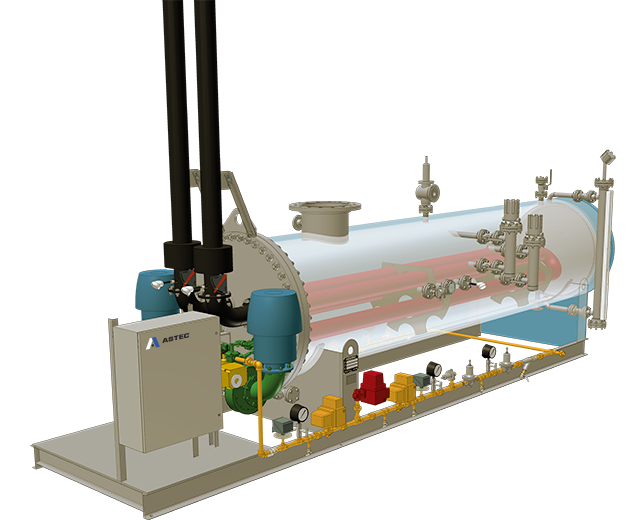

Our reboilers can be configured for a specific use and to suit customer needs. In its standard configuration the unit consists of a steel shell that contains two long-life fire tubes, each with a separate burner. The fire tubes are removable and can be replaced if necessary.

The forced draft burners are gas-fired. Natural draft burners are optional. Each burner has a turndown ratio of 10 to 1. Use of two burners provides a combined turndown ratio of 20 to 1.

The reboiler has natural circulation within the unit and does not require a booster pump. This reduces the electrical energy required—an important consideration for offshore platforms.

Heatec Helical Coil Reboiler

Heatec Fire Tube Reboiler

The forced draft burners are gas-fired. Natural draft burners are optional. Each burner has a turndown ratio of 10 to 1. Use of two burners provides a combined turndown ratio of 20 to 1.

The reboiler has natural circulation within the unit and does not require a booster pump. This reduces the electrical energy required—an important consideration for offshore platforms.
