Peterson 5050H Electric Whole Tree Chipper

Overview

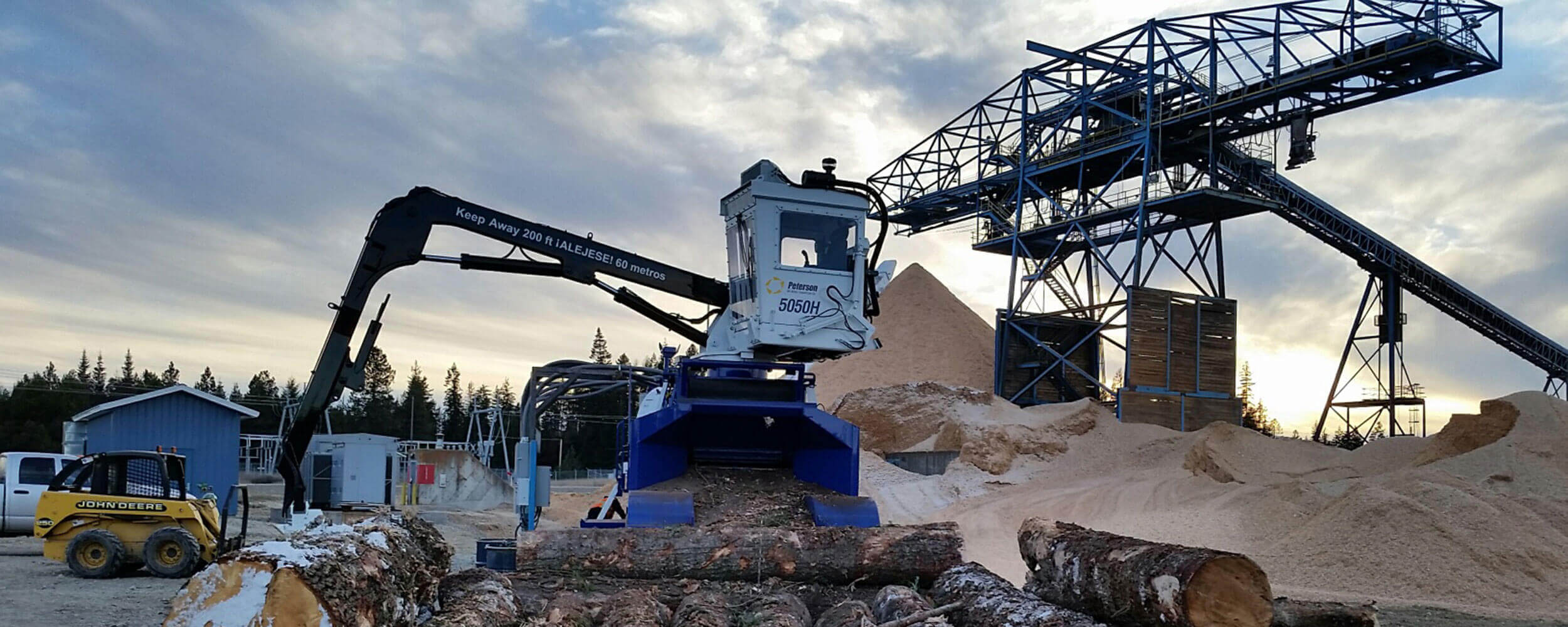

The stationary, electric Peterson 5050H Delimber Debarker Disc Chipper produces high quality low bark content chips for wood pulp and pellets, processing whole trees in one continuous operation.

Equipped with a large feed throat, the 5050H can accept up to a 23-inch (56 cm) diameter single tree or multiple smaller stems. The 5050H can be configured with a three or four pocket disc, with several optional sheave sizes to make precisely the chip you need.

The standard three-pocket disc produces chips from ⅝ to 1 ¼ inches (16–32 mm) long, while the optional four-pocket disc produces chips from ½ to 1 inches (13–25 mm) long. Chipping production rates up to 150 tons (136 tonnes) per hour can be achieved depending on chip size and wood characteristics.

Key Specifications

Specifications	Specifications
54' 7"	1664 cm
15' 2"	462 cm
52' 9"	1608 cm
11' 9"	358 cm
13' 6"	411 cm
50' 9"	1547 cm
2' 11"	90 cm
10"	26 cm
13"	33 cm
60"	152 cm
1' 8"	51 cm
41' 9"	1273 cm
46' 9"	1,425 cm
4' 2"	127 cm

Dimensions	Specifications
Operating Length	54' 7"
Operating Width	15' 2"
Travel Length	52' 9"
Travel Width	11' 9"
Travel Height	13' 6"
Frame Length	50' 9"
Front Ground Clearance	2' 11"
Rear Ground Clearance	10"
Ground Clearance	13"
Axle Spacing	60"
Front to 5th Wheel	1' 8"
5th Wheel to Center Axle	41' 9"
5th Wheel to Rear Axle	46' 9"
5th Wheel Height	4' 2"

Dimensions	Specifications
tri-Axle Weight	27 197 kg
5th Wheel Weight	20 412 kg
Total Weight	46 947 kg

Dimensions	Specifications
tri-Axle Weight	59,960 lbs
5th Wheel Weight	45,000 lbs
Total Weight	103,500 lbs

Dimensions	Specifications
Fuel Tank Capacity	1135 L
Electric Power	USA: 460 VAC, 60 Hz, 3-phase Europe : 400 VAC, 50 Hz, 3-phase Canada: 575 VAC, 60 Hz, 3-phase
Disc Motor	crusher duty, 1x 447 kW crusher duty, 2x 597 kW crusher duty, 2x 745 kW
Hydraulic Motor	pump duty, 1x 447 kW
System Controls
Adaptive Control System	Checkmark
Radio Remote	Checkmark
Peterson+ Analytics	Checkmark

Dimensions	Specifications
Fuel Tank Capacity	300 gal
Electric Power	USA: 460 VAC, 60 Hz, 3-phase Europe : 400 VAC, 50 Hz, 3-phase Canada: 575 VAC, 60 Hz, 3-phase
Disc Motor	crusher duty, 1x 600 hp crusher duty, 2x 400 hp crusher duty, 2x 500 hp
Hydraulic Motor	pump duty, 1x 600 hp
System Controls
Adaptive Control System	Checkmark
Radio Remote	Checkmark
Peterson+ Analytics	Checkmark

Delimber/Debarker Flail	Specifications
Flail Drums	single lower and dual floating upper
Drum Diameter	27 cm
Flail Rods/Drum	6 per drum
Flail Chain/Drum	78 chains, 8 links each
Drive Type	hydrostatic
Flail Speed Range	400 to 700 rpm
End Discharge Bark Mover	305 x 61 cm
Variable Flail Speed	adjustable from cab

Delimber/Debarker Flail	Specifications
Flail Drums	single lower and dual floating upper
Drum Diameter	11"
Flail Rods/Drum	6 per drum
Flail Chain/Drum	78 chains, 8 links each
Drive Type	hydrostatic
Flail Speed Range	400 to 700 rpm
End Discharge Bark Mover	120" x 24"
Variable Flail Speed	adjustable from cab

Feed System	Specifications
Feed Opening (w x h)	133 x 61 cm
Feed Speed Range	19 to 52 m/min
Maximum Log Diameter	56 cm
Feed Rolls	dual with floating top rolls
Lower Feed Rolls	7 powered
Log Loader
Lift Capacity	5376 kg at 457 cm
Hydraulic Knuckle Boom	2-section, 818 cm
Grapple with Heel Rack	360° rotation, 107 cm
Controls	two lever electronic joystick
Enclosed Weatherized Operator's Cab	with Air Conditioner

Feed System	Specifications
Feed Opening (w x h)	53" w x 24" h
Feed Speed Range	64 to 170 ft/min
Maximum Log Diameter	23"
Feed Rolls	dual with floating top rolls
Lower Feed Rolls	7 powered
Log Loader
Lift Capacity	11,851 lbs at 15'
Hydraulic Knuckle Boom	2-section, 26' 10"
Grapple with Heel Rack	360° rotation, 42"
Controls	two lever electronic joystick
Enclosed Weatherized Operator's Cab	with Air Conditioner

Chipper	Specifications
Drum Size	heavy duty, 168 cm diameter
Knife Pockets	3 or 4 pockets
Knife Systems	Babbitt or Key Knife™
Discharge Spout	hydraulic swivel top or end loading
Chip Size	13 to 32 mm

Chipper	Specifications
Drum Size	heavy duty, 66" diameter
Knife Pockets	3 or 4 pockets
Knife Systems	Babbitt or Key Knife™
Discharge Spout	hydraulic swivel top or end loading
Chip Size	1/2" to 1 1/4"

UNITS:

All specifications subject to change without notice.

Features

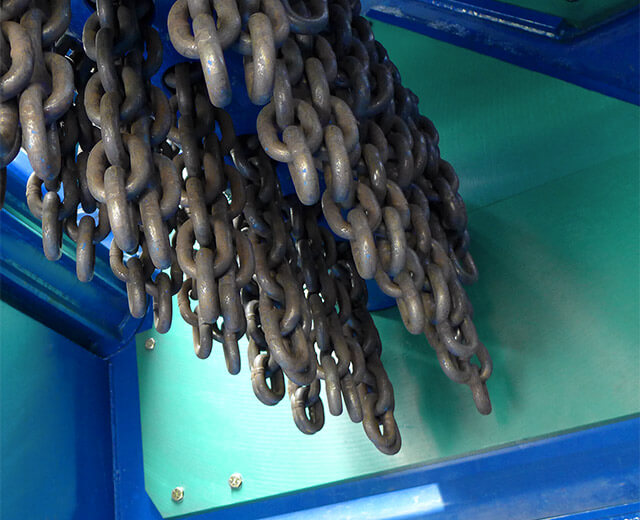

Easy-to-Service Chain Flails and Replaceable Wear Liners

Upper and lower chain flails strip bark and limbs from the stems, replaceable UHMW
wear liners protect the flail housing sidewalls.
A high visibility, weatherized cab meets OSHA Standards

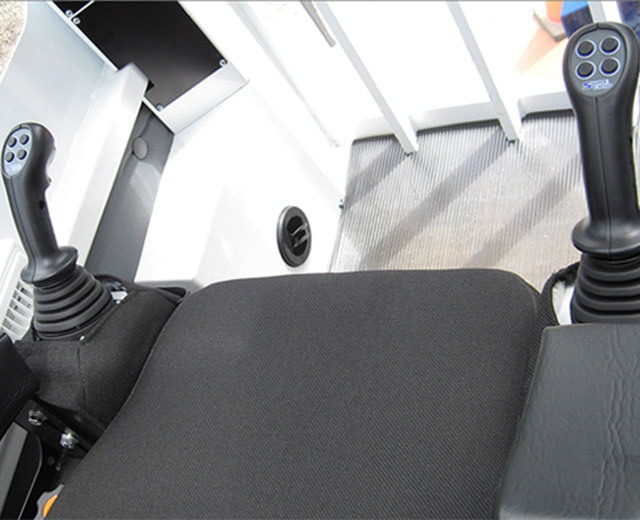

Ergonomic joystick controls provide precise control of the two-section knuckle-boom log loader. End loading or top loading spouts are available.

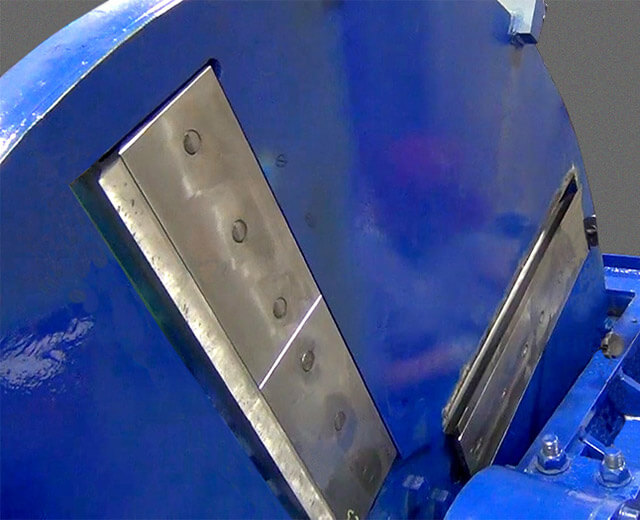

Two chipper disc and knife systems available

Peterson disc chippers come with three or four pocket, 66" (167 cm) diameter chipper discs with traditional Babbitted knife systems, or Key Knife™ systems.
