Peterson BT60C Blower Truck

Overview

With a Peterson BT60C Blower Truck, you can tackle a wider range of assignments.

Our high capacity delivery system handles larger erosion control and commercial landscape projects. Reduced set-up and clean-up time produces a faster turn around, resulting in more deliveries and more cubic yards each day. Extra daily loads make a significant difference to your bottom line.

The large footprint feeder, combined with the high-capacity tri-lobe blower, provides increased airflow for farther and faster delivery. Larger diameter hoses provide added protection against clogging. These features enable you to be more productive and deliver a wider range of materials each day.

Applications

Playground Chips

Playground chips/mulch typically have a fibrous consistency, free of twigs, leaves and hazardous materials, no larger than two inches long and have the ability to drain water.
Learn More
Mulch

Organic mulch is a product that can decompose, providing nutrients to the soil over time. It can be made from a variety of materials, typically organic, but not exclusively.
Learn More
Compost

Compost is decomposed organic matter derived from either a single source material or blended for specific application performance. Materials can include garden debris, kitchen scraps, manure or yard and lawn waste.
Learn More

Downloads

Blower Truck Brochure
Download (pdf) 7 MB
BT60C Blower Truck Spec Sheet
Download (pdf) 329 KB

Key Specifications

Truck Platform	Specifications
Chassis	any Class 8
Standard Chassis	Peterbilt 567
Cab Configuration	Driver Bucket Seat & 2-Person Bench Seat

Truck Platform	Specifications
Chassis	any Class 8
Standard Chassis	Peterbilt 567
Cab Configuration	Driver Bucket Seat & 2-Person Bench Seat

Feed System
Floor	Aluminum Walking Floor
Wear Liners	Aluminum
Blower System
Blower	Tri-Lobe^®
Blowing Pressure	1.03 bar
Large Capacity Silencer	Intake and Discharge

Feed System
Floor	Aluminum Walking Floor
Wear Liners	Aluminum
Blower System
Blower	Tri-Lobe^®
Blowing Pressure	15 psi
Large Capacity Silencer	Intake and Discharge

Fluid Capacities
Hydraulic Tank Capacity	360 L
Water (Dust Suppression Option	757 L

Fluid Capacities
Hydraulic Tank Capacity	95 gal
Water (Dust Suppression Option	200 gal

Dimensions	Specifications
Operating Length	122 m
Operating Width	259 cm
Operating Height	389 cm
Loading Height	376 cm
Box Length	850 cm
Box Width	252 cm
Box Height	259 cm
Box Volume, Struck	46.6 m³
Box Volume, Typical	44.3 m³

Dimensions	Specifications
Operating Length	40’
Operating Width	8’ 6”
Operating Height	12’ 9”
Loading Height	12’ 4”
Box Length	27' 11"
Box Width	8' 3"
Box Height	16' 9"
Box Volume, Struck	61 yds³
Box Volume, Typical	58 yds³

Weight	Specifications
Weight with Typical Options	17 237 kg
Box Only Weight	8 482 kg

Weight	Specifications
Weight with Typical Options	approx. 38,000 lbs
Box Only Weight	18,700 lbs

System Controls
Peterson Adaptive Feed System	Checkmark
Radio Remote	Checkmark

System Controls
Peterson Adaptive Feed System	Checkmark
Radio Remote	Checkmark

Discharge System
Hose Reel	powered, holds up to 98 m
Discharge Hose Length	6 m heavy-duty, 91 m standard
Hose Diameter	127 mm, 100 mm
Noise Level with Optional Discharge Silencers	87 db at 7 m

Discharge System
Hose Reel	powered, holds up to 320 ft
Discharge Hose Length	20 ft heavy-duty, 300 ft standard
Hose Diameter	5", 4"
Noise Level with Optional Discharge Silencers	87 db at 23‘

Production
Discharge Volume	up to 46 m³ per hour
Material Weight	up to 1245 kg/m³

Actual output may vary due to moisture content, material density and size, support equipment, terrain variables, and hose diameter'

Production
Discharge Volume	up to 60 yds³
Material Weight	up to 2,100 lbs/yd³

Actual output may vary due to moisture content, material density and size, support equipment, terrain variables, and hose diameter'

UNITS:

All specifications subject to change without notice.

Features

Easy Maintenance

A series of drive chains keep the auger and tines moving steadily. Bolt on tensioners and centralized greasing provide easy maintenance.
Air Stream Injection System

Evenly distribute seeds or fertilizer directly into the material mix. A tackifier can be added for efficient erosion control applications.

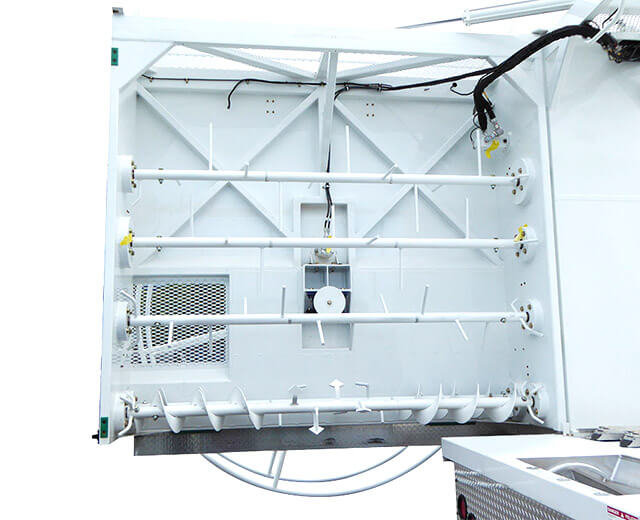

Side-Opening End Gate

The side-opening end gate on Peterson blower trucks and stand-alone blower units, provides easy access to the feed system allowing for easier and safer maintenance.
High Capacity Blower

Our high capacity Tri-Lobe blower provides increased airflow and production. Larger five-inch diameter hoses can blow materials that could plug smaller hoses.
