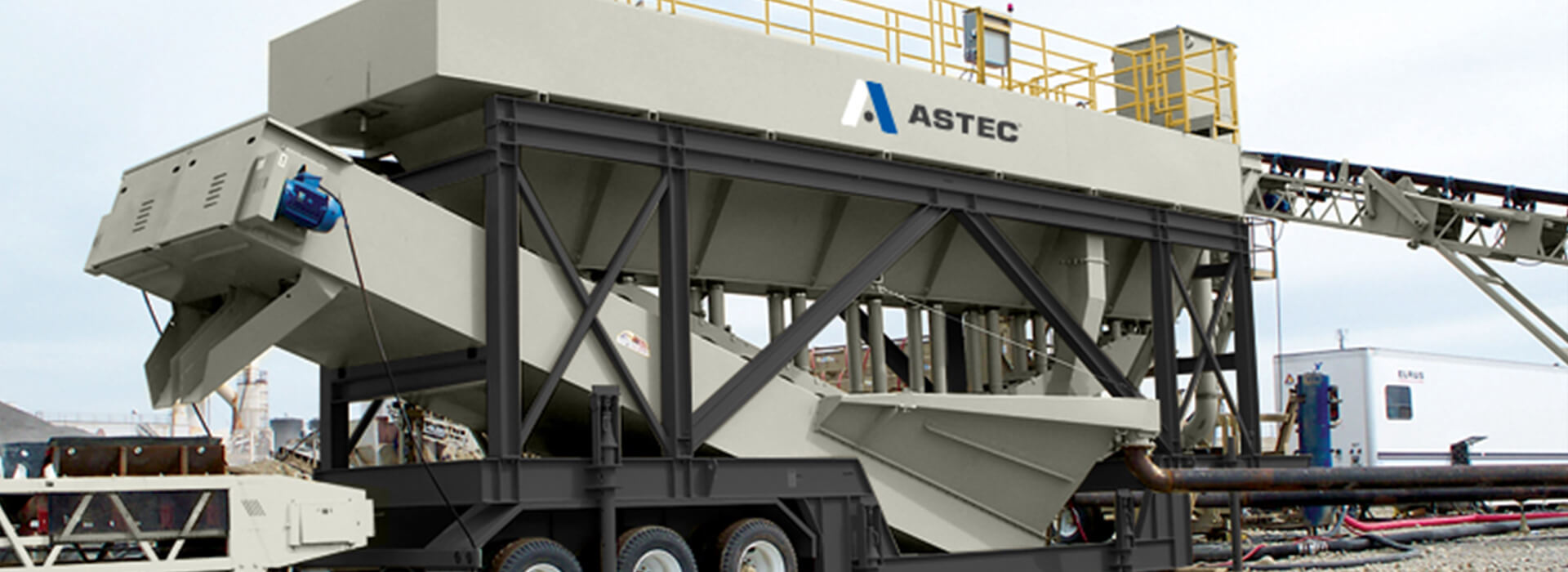

Portable Sand Classifying Plants

Overview

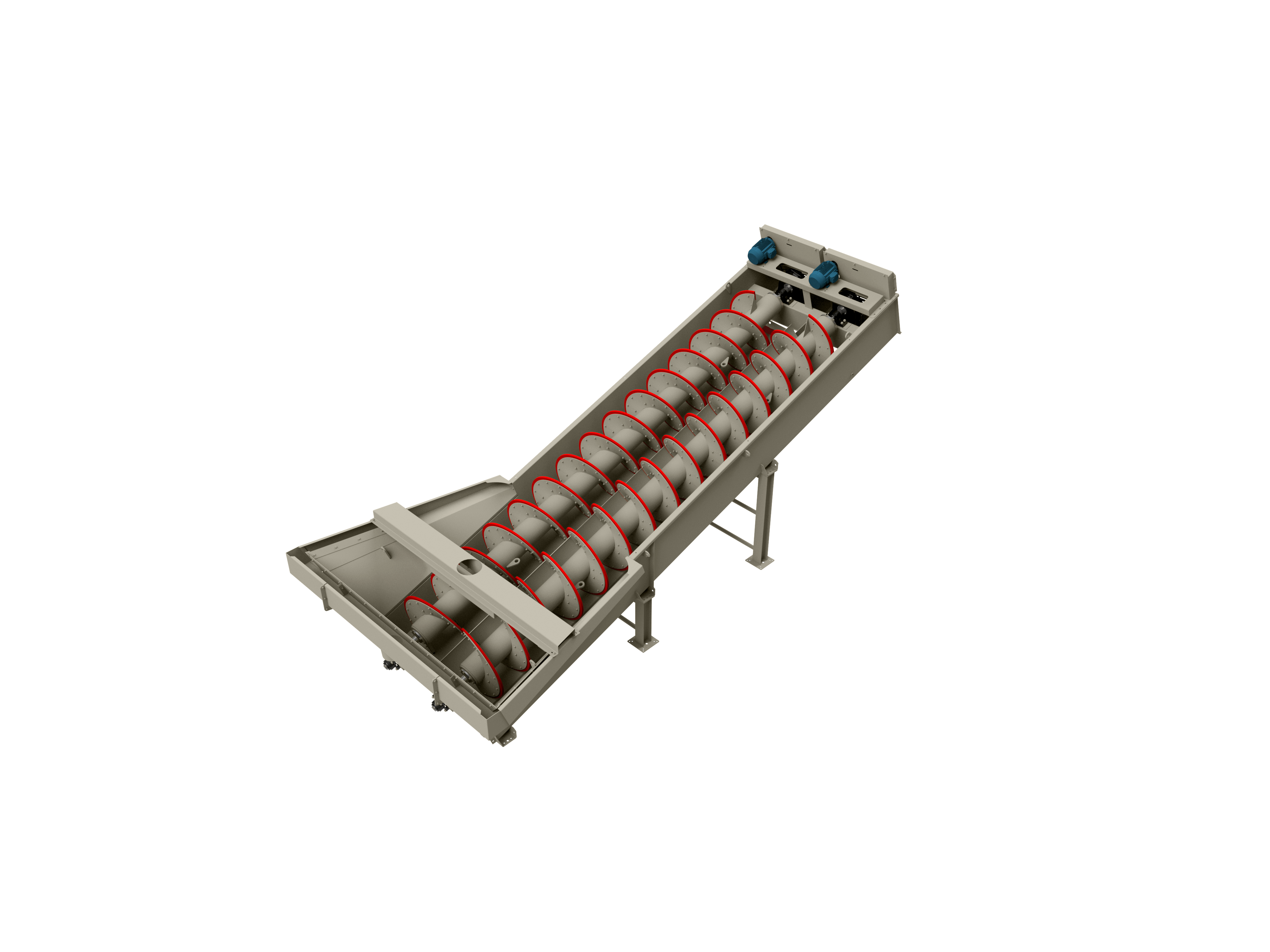

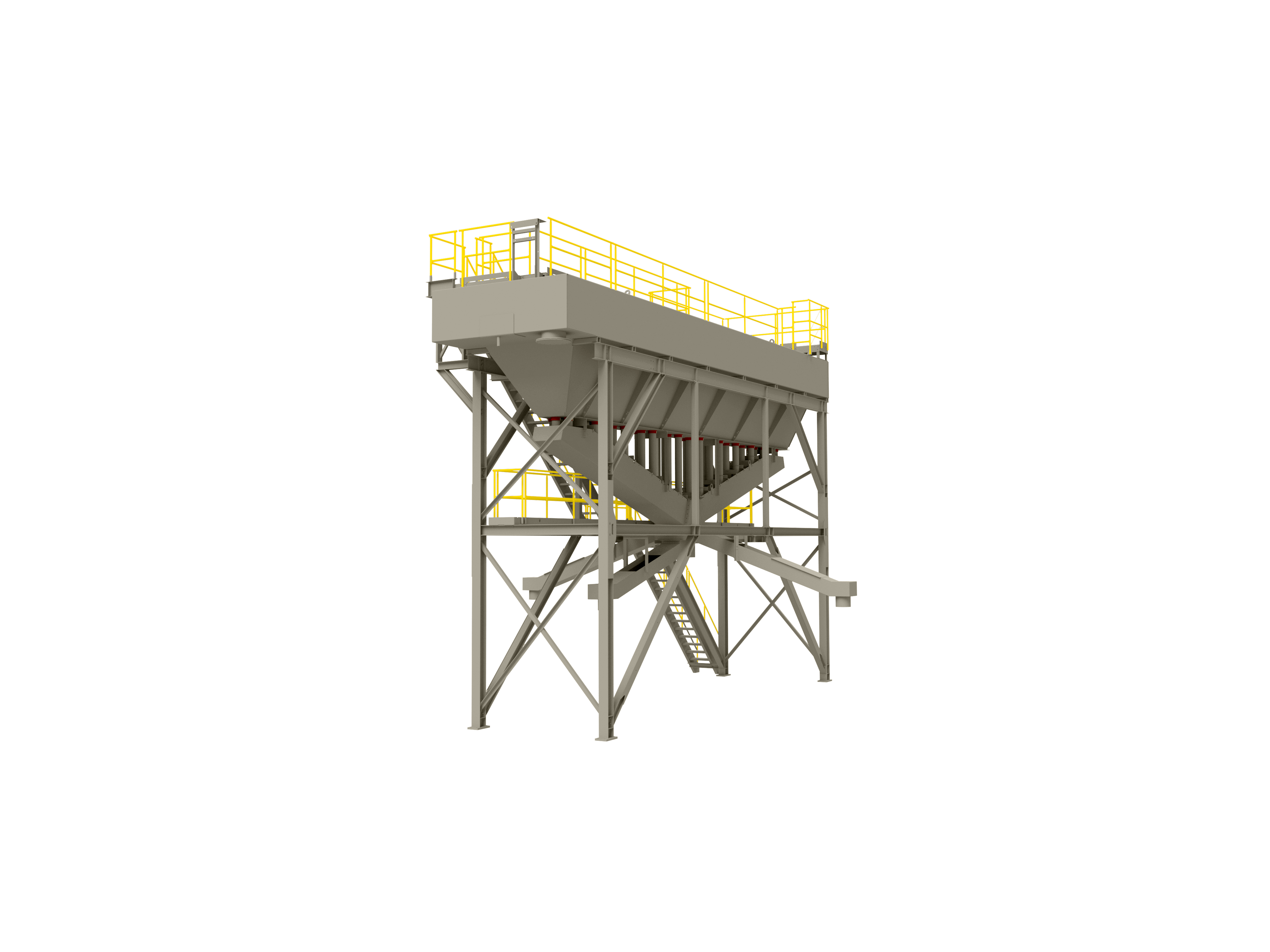

Our classifying plants are engineered to incorporate all of the features of our industry-leading fine material washers and classifying tanks into a single low-profile plant.

With the ability to produce one or two specification products plus a non-spec byproduct, our classifying plants will meet the strictest requirements. Skid-mounted or portable wet screening plants featuring a slurry sump and pump are also available to serve as a scalping/feed system ahead of our classifying plants.

Applications

  • Sand & Gravel

    Aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products.
      Learn More

    • Aggregates

      There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
        Learn More

      Downloads

      Key Specifications

      All specifications subject to change without notice.

      Features

      • Tank Construction

        • Self-supporting tank design
        • Engineered tank to accommodate fine material washer while maintaining low travel height for maximum portability
        • Lack of internal stiffeners reduces turbulence for increased settling efficiency

      • 24-Volt DC Bridge

        • All-hydraulic, stainless steel plumbing
        • Provides enhanced monitoring and troubleshooting
        • More reliable control and operation than 120-volt systems

      • Adjustable Weirs

        • Adjustable overflow weir boards and collecting flume
        • Precise control of overflow slurry
        • Allows producers to meet stringent specifications

      • Efficient Assembly Drive

        • V-belt drive assembly reduces horsepower and maintenance
        • Increased life and reduced operating expenses
        • High-efficiency reducers and bearings for easy maintenance

      • Integral Rising Current Manifold

        • Creates rising current and ensures material separation
        • Maximum deleterious material removal
      Loading animation

      Request More Info

      Are you looking for information on Parts?
      Your information is safe. Check our privacy notice for more details.

      Related Products

      • Modular Sand Classifying Plants

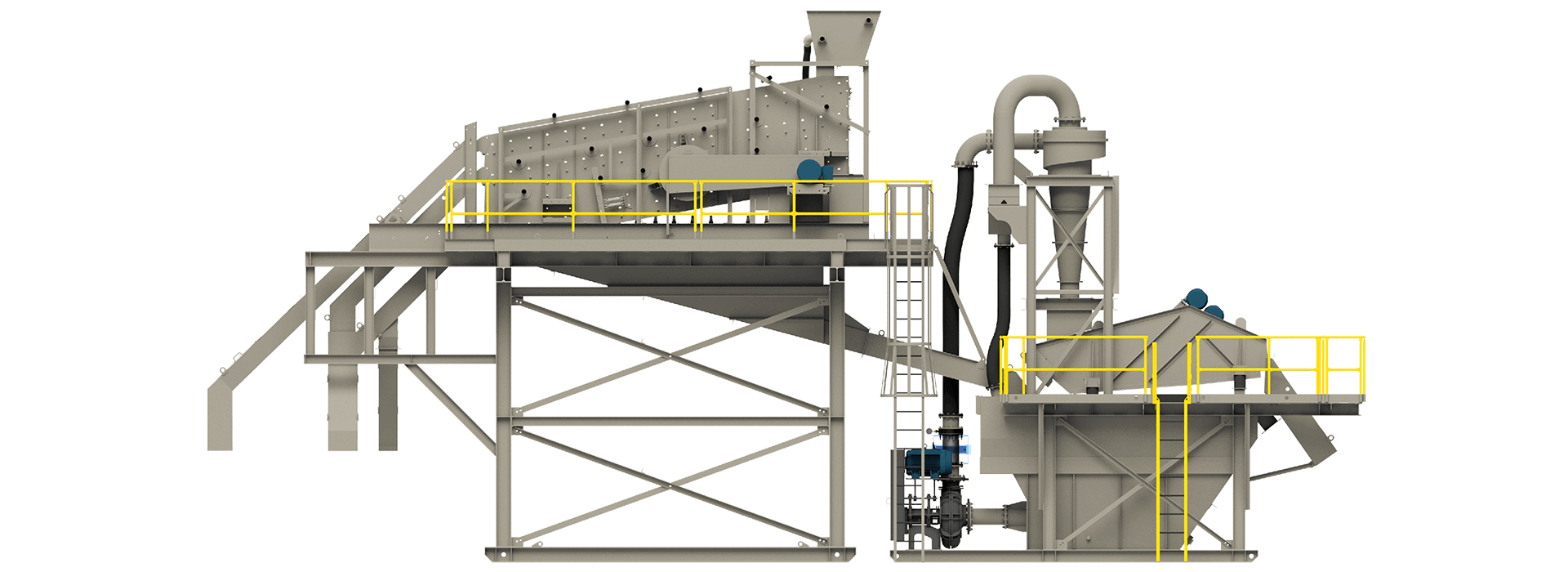

      • Modular Screening/Washing Plants
