Self-Erecting Bin

Overview

The highly portable NTEP Certified Self-Erecting Bin (SEB) self-erects quickly. The super functional SEB package reduces the number of loads by combining several operations into a single unit: drag conveying, batching, surge, truck loading and weighing.

A thick, steel truck loading platform is part of the frame (competing bins usually need expensive concrete foundations). The SEB includes a drag by-pass chute with a built-in bulkhead. Two large hydraulic cylinders raise the SEB into position.

Applications

Asphalt Mixing

A thermal mixing process is required to turn aggregates and liquid AC into an asphalt pavement mix for road construction. This makes an asphalt mixing plant necessary for road construction. The complete line of Astec asphalt mixing plants, and its range of capacities and features, gives you the choices and flexibility to create your optimum solution.
Learn More

Downloads

2023 Astec Storage Silo Brochure
Download (pdf) 2 MB

Features

NTEP Certified

The silo weighing system utilizing load cells is NTEP Certified to ensure accurate ticketing at load-out.

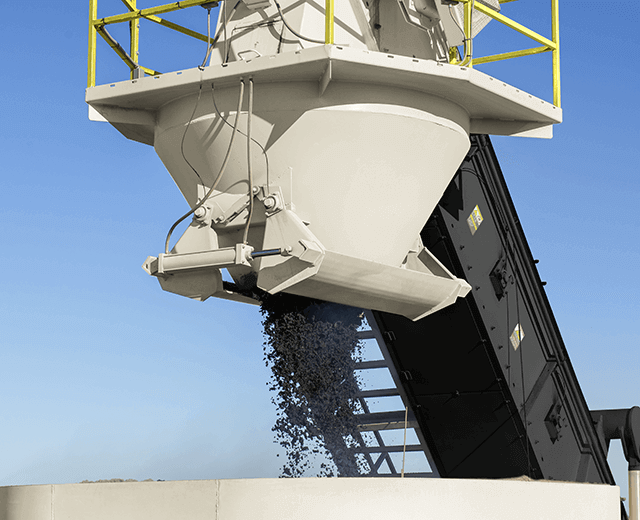

Batcher

A five-ton (3.6 metric ton) batcher is installed
at the top end of the drag conveyor. It collects the mix discharged from the drag conveyor. Segregation is minimized by dropping full batcher loads into the surge bin. Optional 3” of insulation is also available on the batcher to retain heat in the mix.
