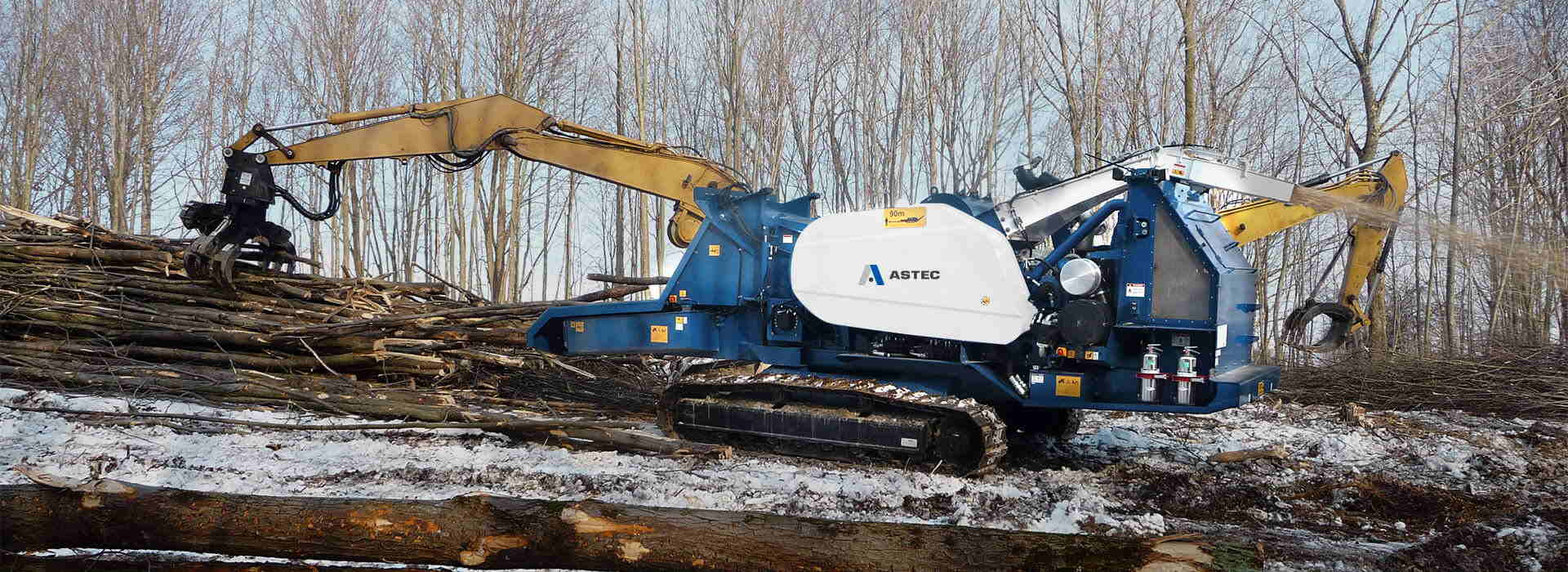

Peterson 4310B Highwalker Drum Chipper
The mounted 4310B Highwalker Tracked Chipper is suited for high volume biomass producers who have a wide variety of feed material from brush and small feed stock to logs up to 24 inches (61 cm) in diameter.
Overview
The mounted 4310B Highwalker Tracked Chipper is suited for high volume biomass producers who have a wide variety of feed material from brush and small feed stock to logs up to 24 inches (61 cm) in diameter.
The 4310B is powered by a 765 horsepower (570 kW) C18
Caterpillar engine. At 58,500 pounds (26 535 kg), the track mounted 4310B Highwalker Tracked Chipper is designed for operations requiring high production and frequent moves between jobs.
The chipper utilizes a 36 inch diameter by 44¾ inch (91 by 114 cm) wide drum with either 6 or 12 knife pockets. Traditional babbitt type knife systems are standard equipment. Chip length can
be set from 1⁄8 to 1¼ inch (3 to 32 mm) depending on rotor and knife configuration. Peterson’s chip accelerator system, adds load density, or
throws chips well away from the machine for land clearing operations.
Features

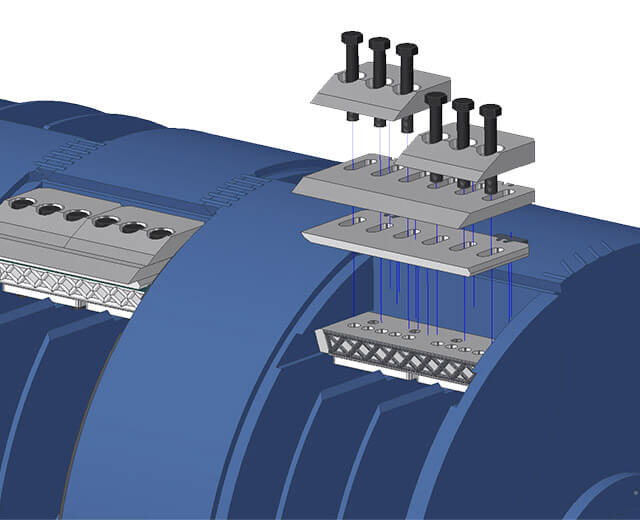

Knife Assemblies at the Heart of the Chipper
Produced from the highest quality alloy chromium steel, heavy-duty Astec knife assemblies achieve uniform production of woodchips with high accepts and minimal losses.
Superior Product Sizing

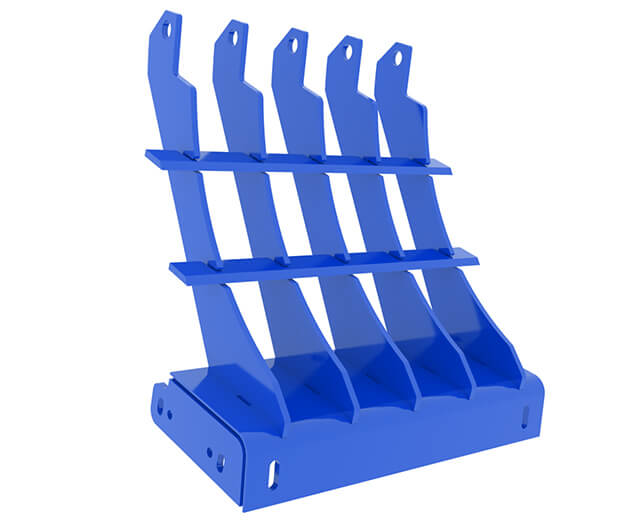

Peterson drum chipper grate system provides ultra-consistent chip sizing; twigs and small stems which can be difficult to size are easily fractured through our innovative system. The chipper grate is located next to the chipper drum and ensures that materials passing through the grate meet a specific size requirement.
Select From 6- or 12-Pocket Drum
Featuring durable AR400 wear surfaces, the 4300 series Drum Chippers comes standard with an 6-pocket drum rotor with one Babbitted knife per pocket. A 12-pocket drum rotor is available for chipping microchips.
Discharge Spout Options
Two discharge spouts are available on all Peterson Drum Chippers. An end-load spout designed to load closed-top chip vans. A top-load discharge spout is also available and designed to load open-top chip vans.
Downloads
Where to Buy
Find an Astec Dealer Near You
Dedicated Support
Innovation You Can Count On, Support You Can Trust.
When you choose Astec, you’re never on your own. Our team is ready to answer your questions, solve problems, and keep your equipment running smoothly—today, tomorrow, and for years to come.
Applications
Orchard Clearout
Commercial orchards are cleared on a rotating cycle to remove lower producing or unhealthy deciduous fruit, citrus and nut trees or to replace them with a more valuable crop.
Learn More about Orchard ClearoutRelated Products
-

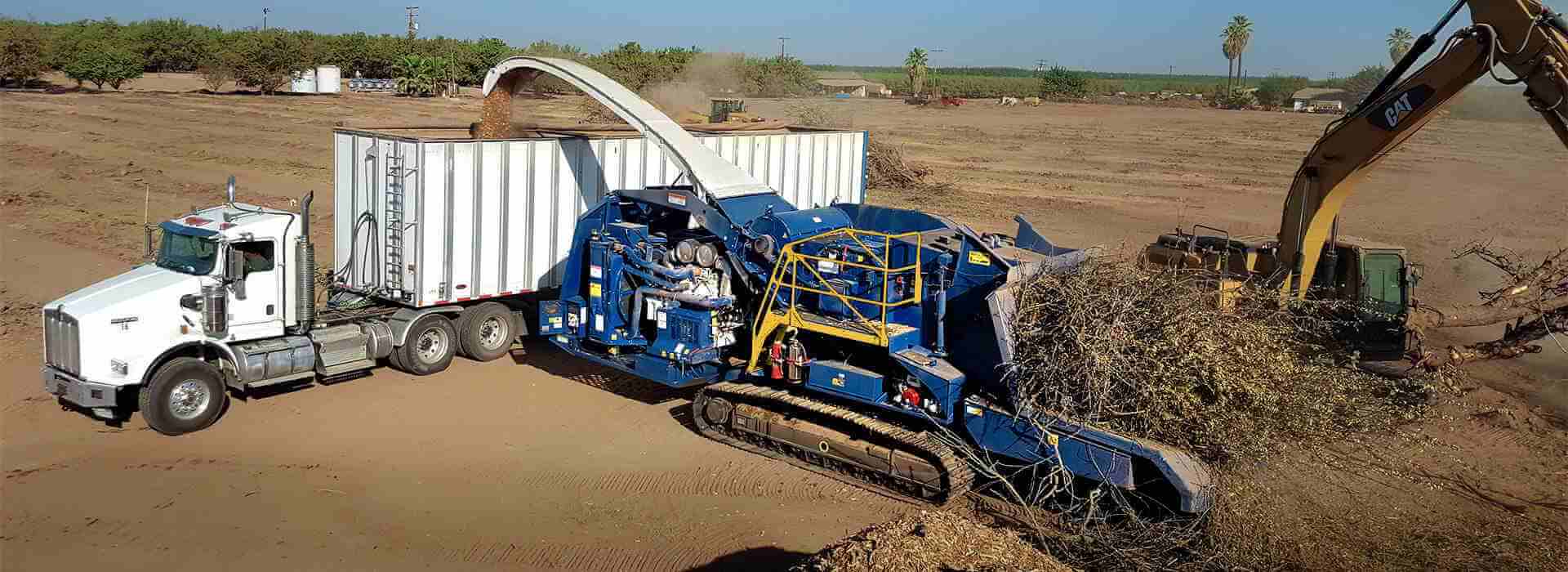

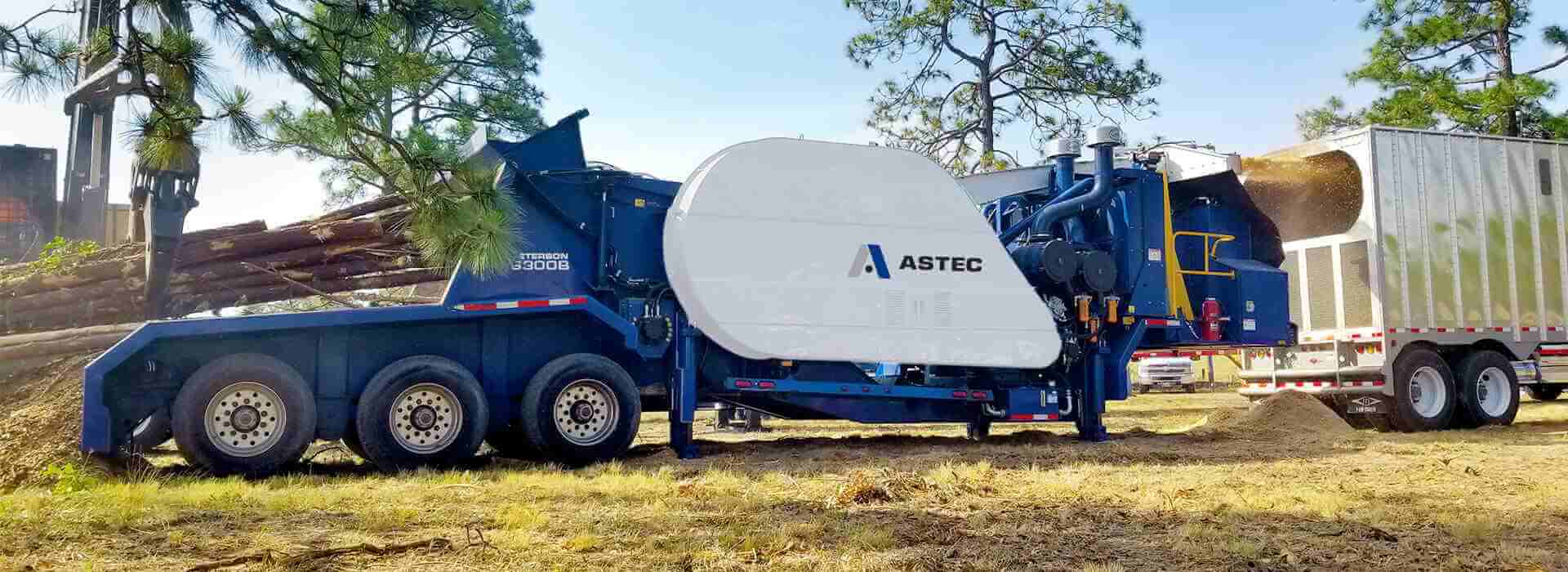

Peterson 6300B Drum Chipper
-
Peterson 6310B Drum Chipper
-

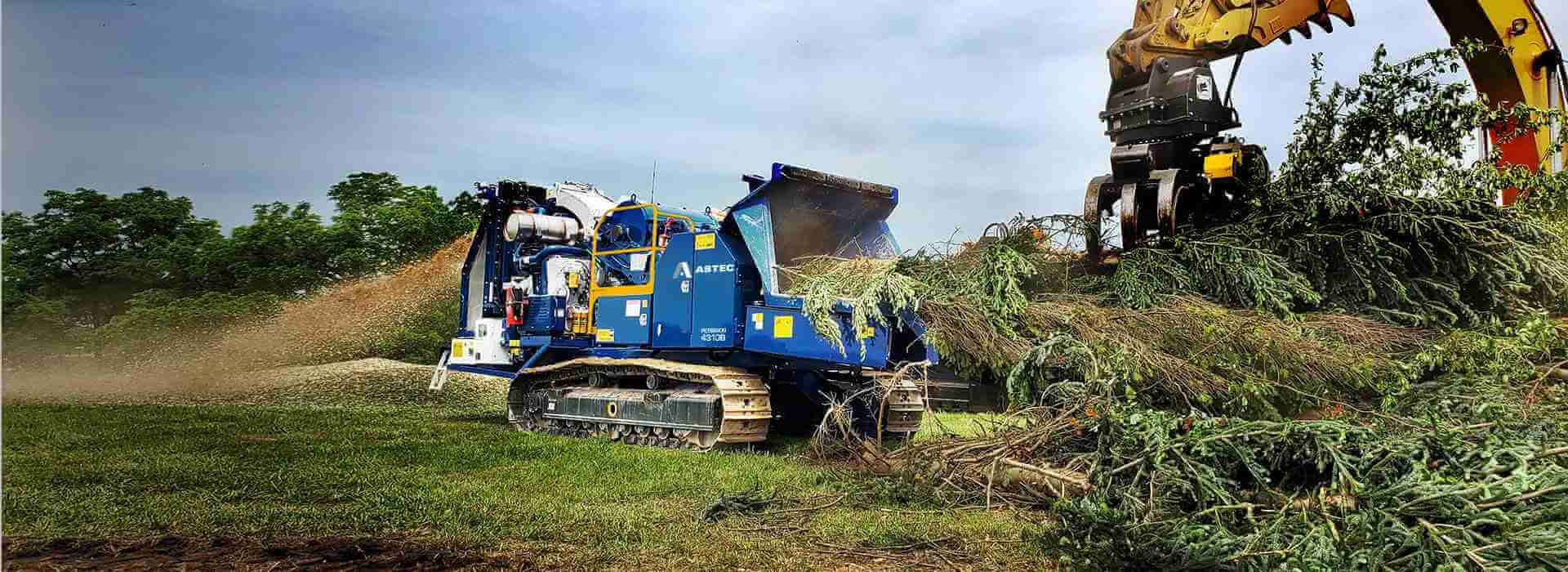

Peterson 4310B Drum Chipper
-
