Roadtec SP-200 Spray Paver
The SP-200 Spray Paver sprays tack and applies hot mix asphalt seconds later. Combining spraying and laydown produces a high-quality mat with a strong bond between layers.
Overview
The SP-200 Spray Paver sprays tack and applies hot mix asphalt seconds later.
Combining spraying and laydown produces a high-quality mat with a strong bond between layers. A spray bar just in front of the paver’s auger distributes the liquid through computer-controlled, self-cleaning valves. An onboard microprocessor precisely controls the rate of flow. Valves can also be controlled manually and are arranged in sets of three, providing plenty of spray capacity so you can move fast. To cut down on refill stops, the SP-200 is equipped with a 2,100-gallon tack tank, the largest tank available on the market today.
Features

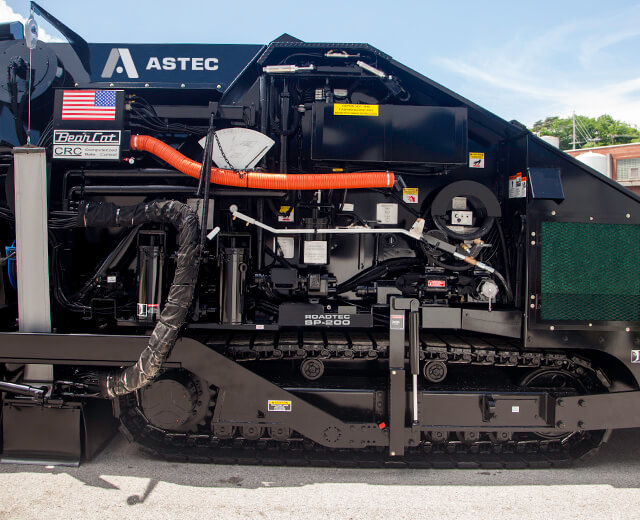

High Capacity Product Tank
High capacity 2,100 gallon heated oil tank. Four inches of insulation are placed around the oil tank so that emulsion does not require offloading overnight.

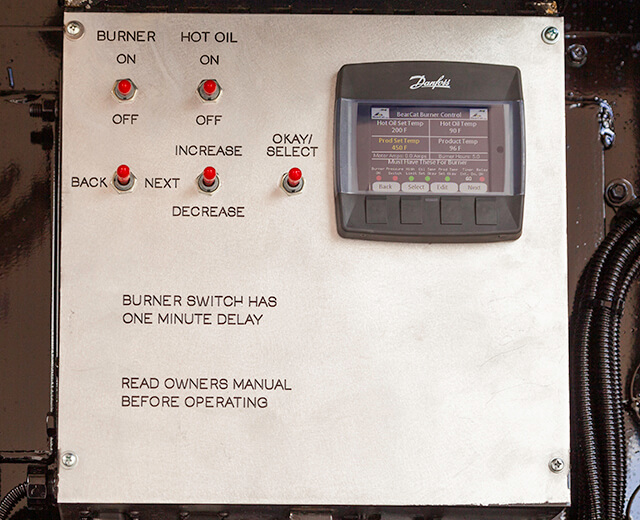

Hot Oil Heating System
Oil is heated by a 500,000 btu diesel-fired helical coil heater. The system can operate at temperatures up to 450ºF for liquid AC.

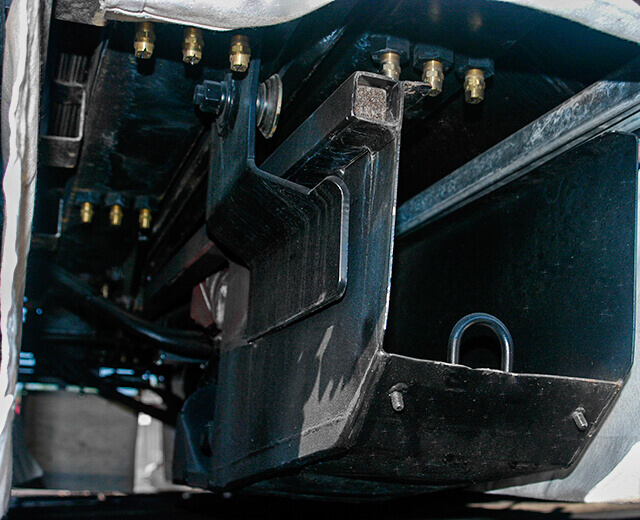

Extendable Spray Bar
Spray bar extends to the full width of the screed for uniform tack coverage.

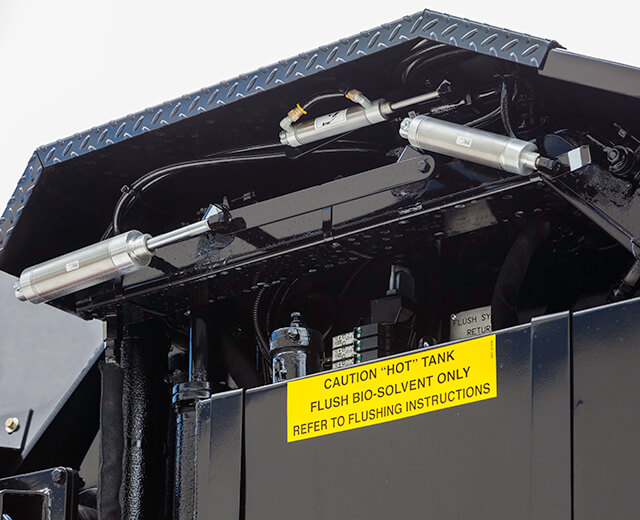

Automated Flush System
Allows for easy, complete machine clean out at the end of the shift.

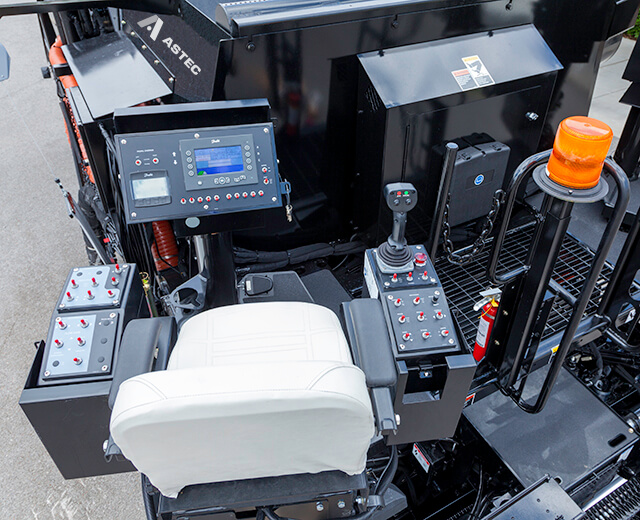

Operator Station
Comfort drive station with armrest controls and swing out seats enable simple and efficient operation.
Where to Buy
Find an Astec Dealer Near You
Dedicated Support
Innovation You Can Count On, Support You Can Trust.
When you choose Astec, you’re never on your own. Our team is ready to answer your questions, solve problems, and keep your equipment running smoothly—today, tomorrow, and for years to come.
Applications

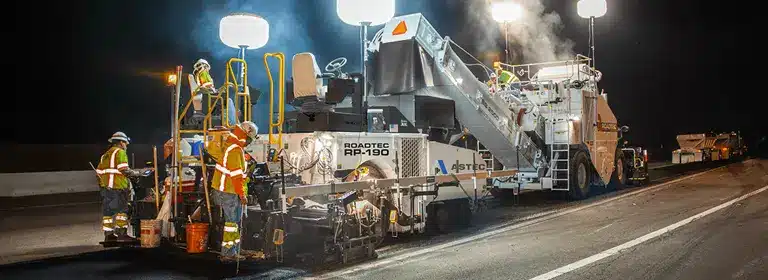

Highway Paving
Highway class paving projects are large scale and can include interstates, expressways and superhighways.
Learn More about Highway Paving

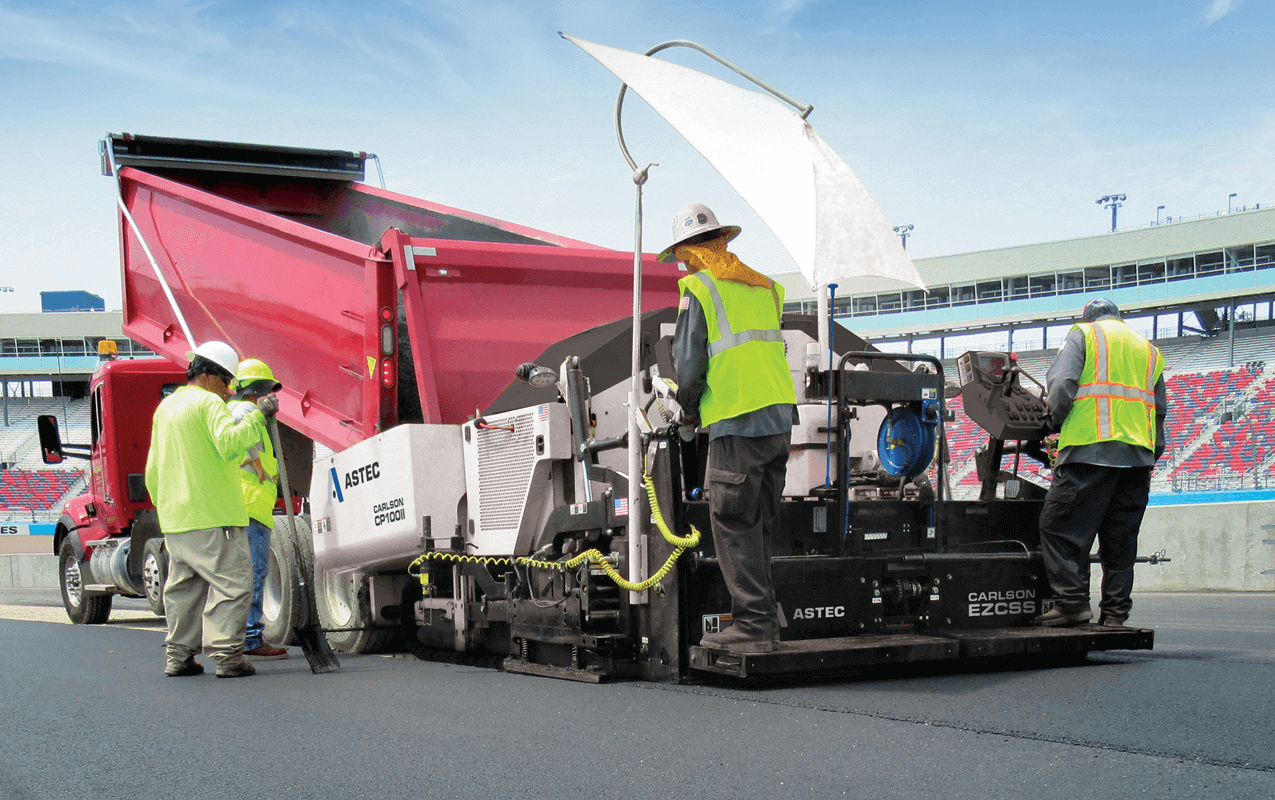

Motor Sports Paving
