Astec Voyager Highly Portable Asphalt Plant

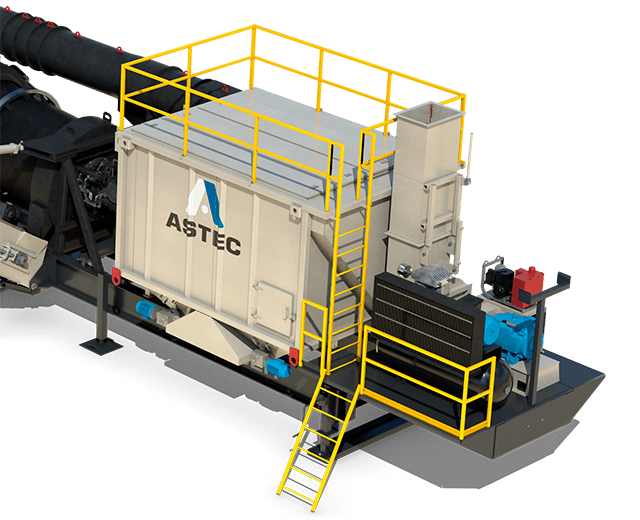

35,890 m³/hr (21,125 ACFM) hybrid pulse jet baghouse featuring a streamlined design for ultimate portability and functionality.

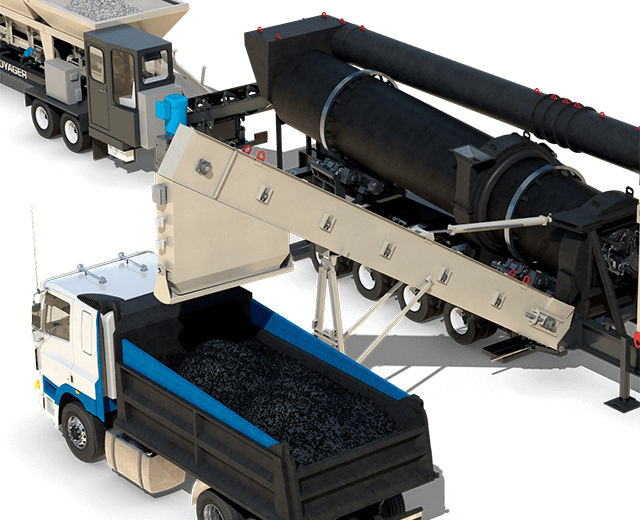

The pivoting drag conveyor and batcher attach to the frame during transport. Heavy-duty steel drag components increase reliability. The drag bottom can be unbolted and replaced lowering maintenance costs.

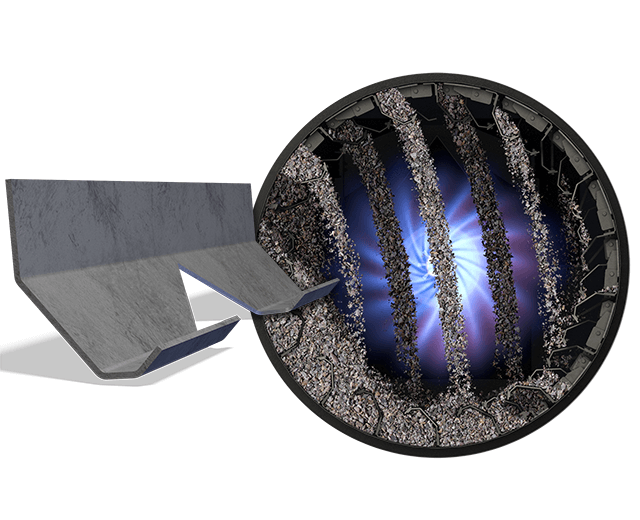

The v-shaped notch allows material to start pouring out of the flights at the beginning of each revolution. The material in the flight continues to pour out until the rotation is complete. This is what provides an even veil of material. The v-flight is also larger than a traditional flight, allowing it to carry the same amount of aggregate even with the notch.

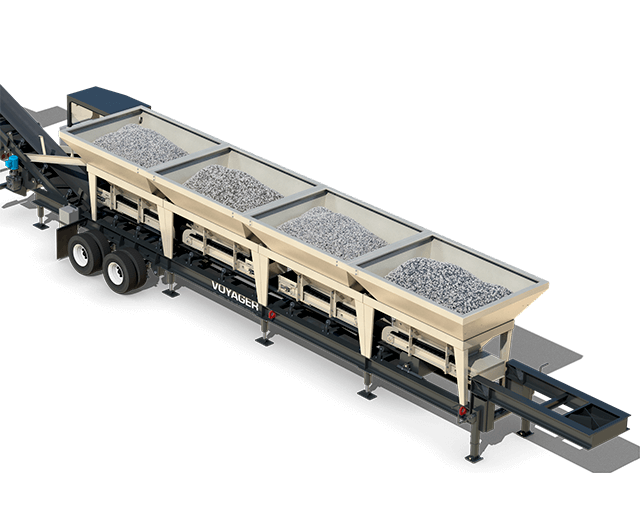

• Four bins are standard and more can be easily added to increase capacity with a bolt together bin design.
• The very steep side walls of the bins promote smooth flow of the aggregate and prevent bridging of materials.
• Air ride suspension provides a smooth ride and allows for fast setup times by raising and lowering the drum into place.

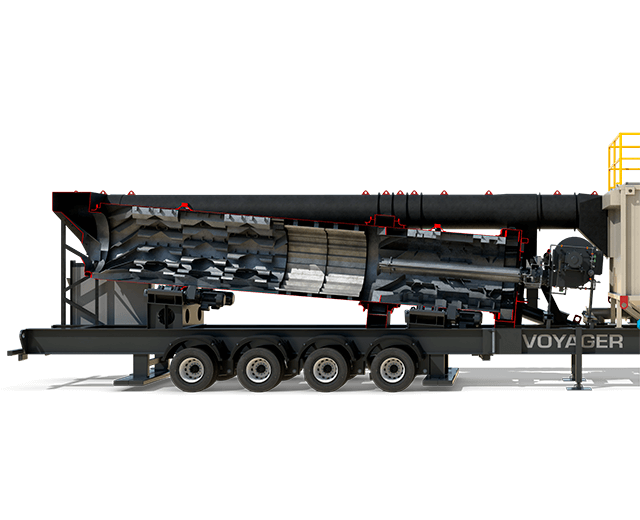

Achieving a quality asphalt pavement requires mixing materials correctly, with sufficient time for blending. The virgin aggregate, recycled asphalt, additives, baghouse fines, and virgin liquid AC must all be blended thoroughly to ensure everything is coated and the gradation is uniform. The mixing chamber in the UniDrum mixer is an excellent mechanism to ensure adequate blending to achieve a quality mix.

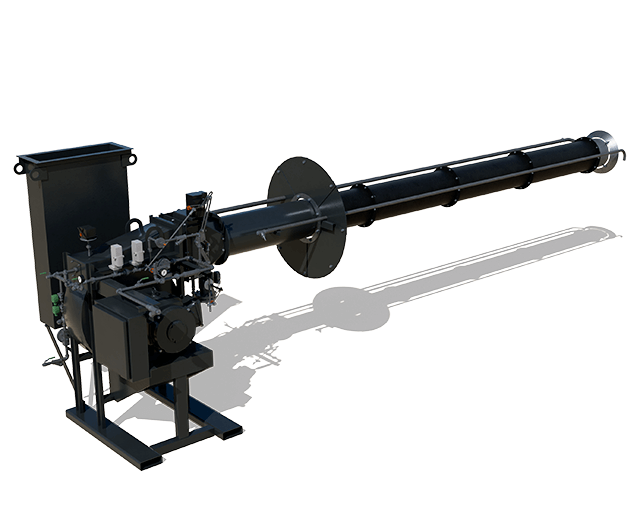

The Fury burner provides a robust build and simple, accessible construction. Compared to other open-fired designs, the Fury burner achieves better emissions and fuel-efficiency by putting 50% more combustion air through the burner.
